Shopfront: Current Transformer & Water Meter Sales


Current Transformers & Accessories

These Class 0.5S Current Transformers are designed and type tested to full compliance with AS60044.1–2007 and have type test certificates from a NATA-accredited laboratory. These Current Transformers comply with the requirements of the National Electricity Rules. Also available for download is the PMPP 13 LVCT Metering Installation Mandatory Requirements (NSW) document which has valuable information on equipment specifications, and dimensions, together with guidance on how the CTs must be installed to ensure compliance with the National Electricity Rules.


click to view full-size image

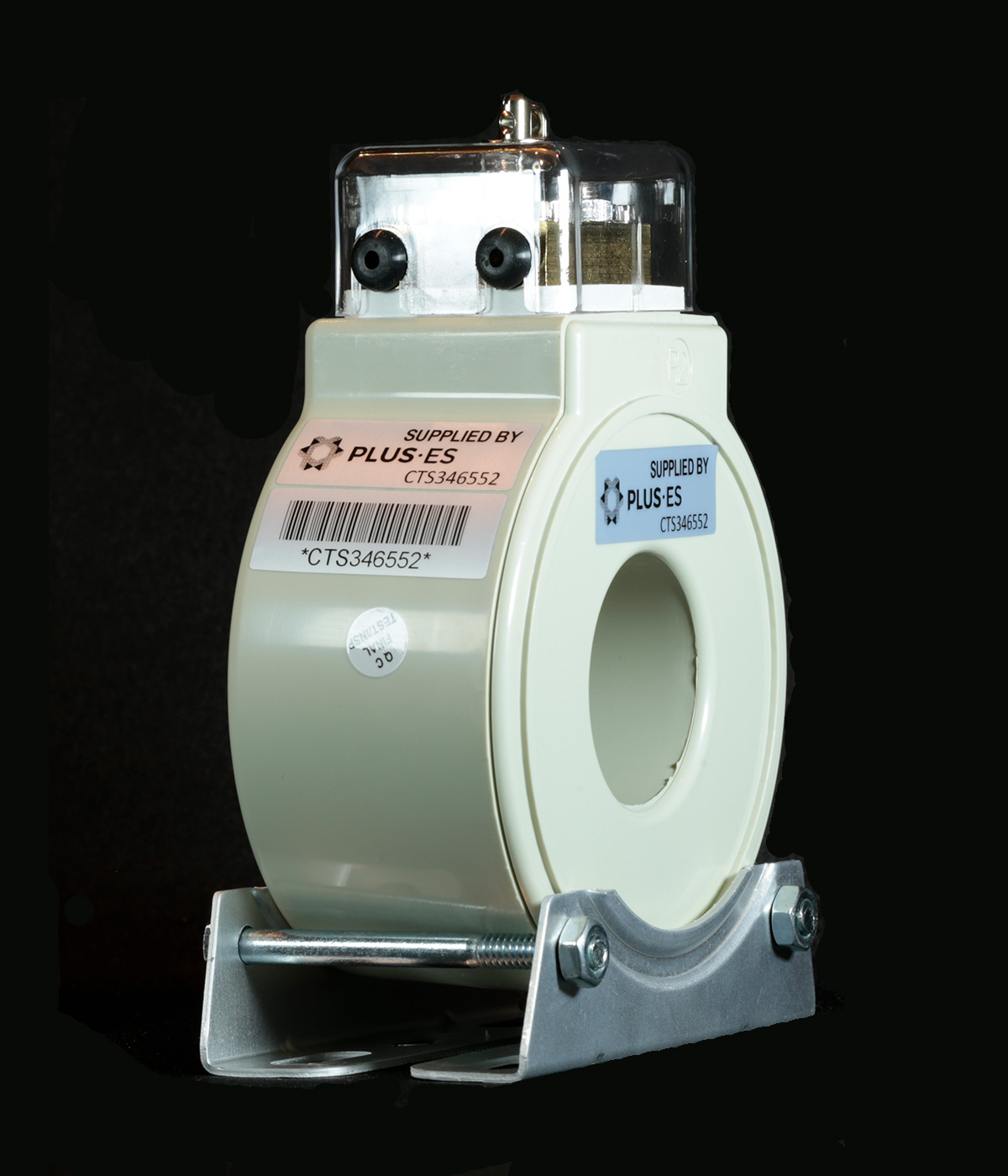

Type CTS - AS60044.1
Class 0.5S Ratio 200/5 Burden 5VA,
Maximum load of 80 - 400A


click to close

Current Transformer - S Type click for specifications

$324.00 set of 3
click to view full-size image

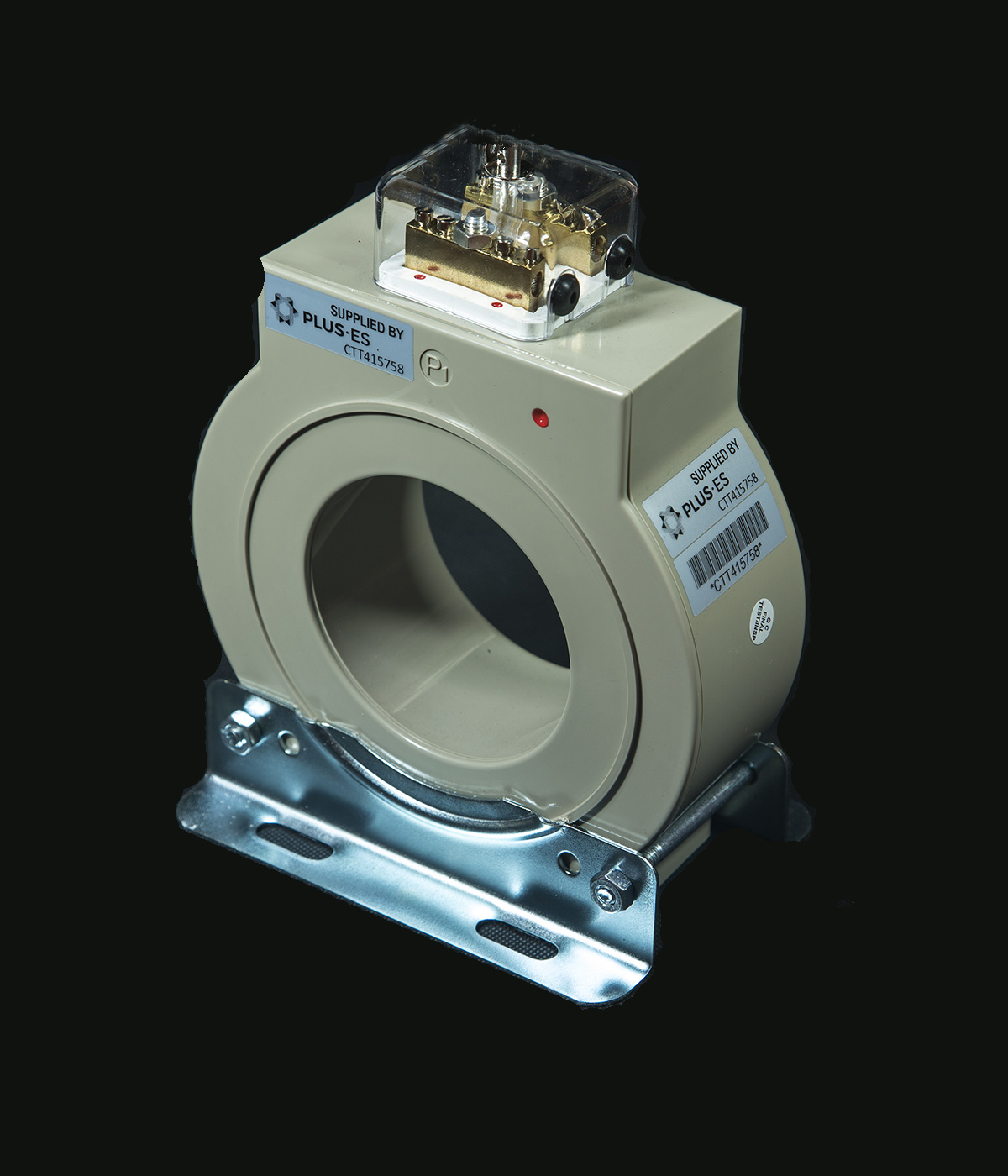

Type CTT - AS60044.1
Class 0.5S Ratio 800/5
Burden 15VA maximum load >200A - 1600A


click to close

Current Transformer - T Type click for specifications

$429.00 set of 3
click to view full-size image

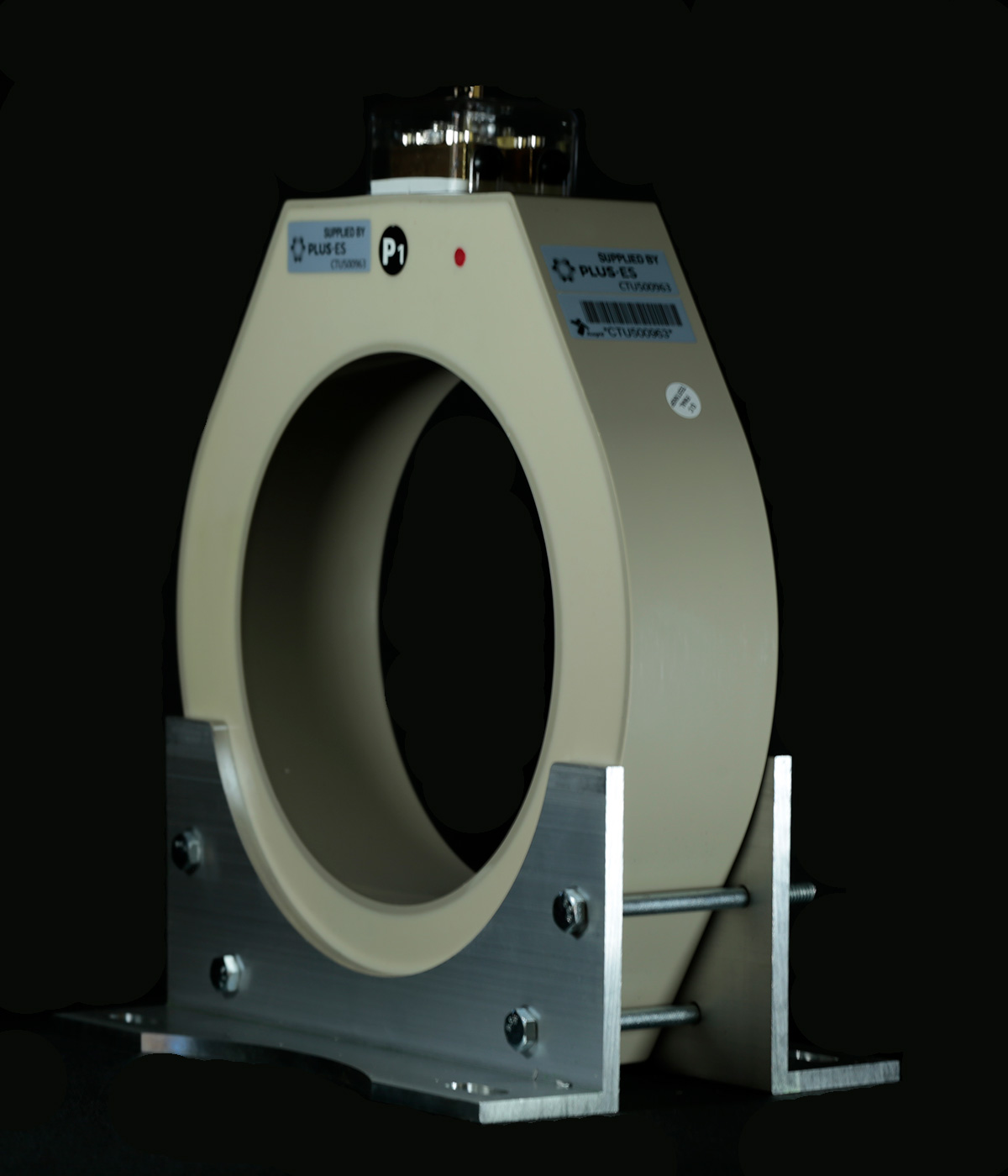

Type CTU - AS60044.1
Class 0.5S Ratio 2000/5
Burden 15VA maximum load >1500A – 4000A


click to close

Current Transformer - U Type click for specifications

$1,245.00 set of 3
click to view full-size image

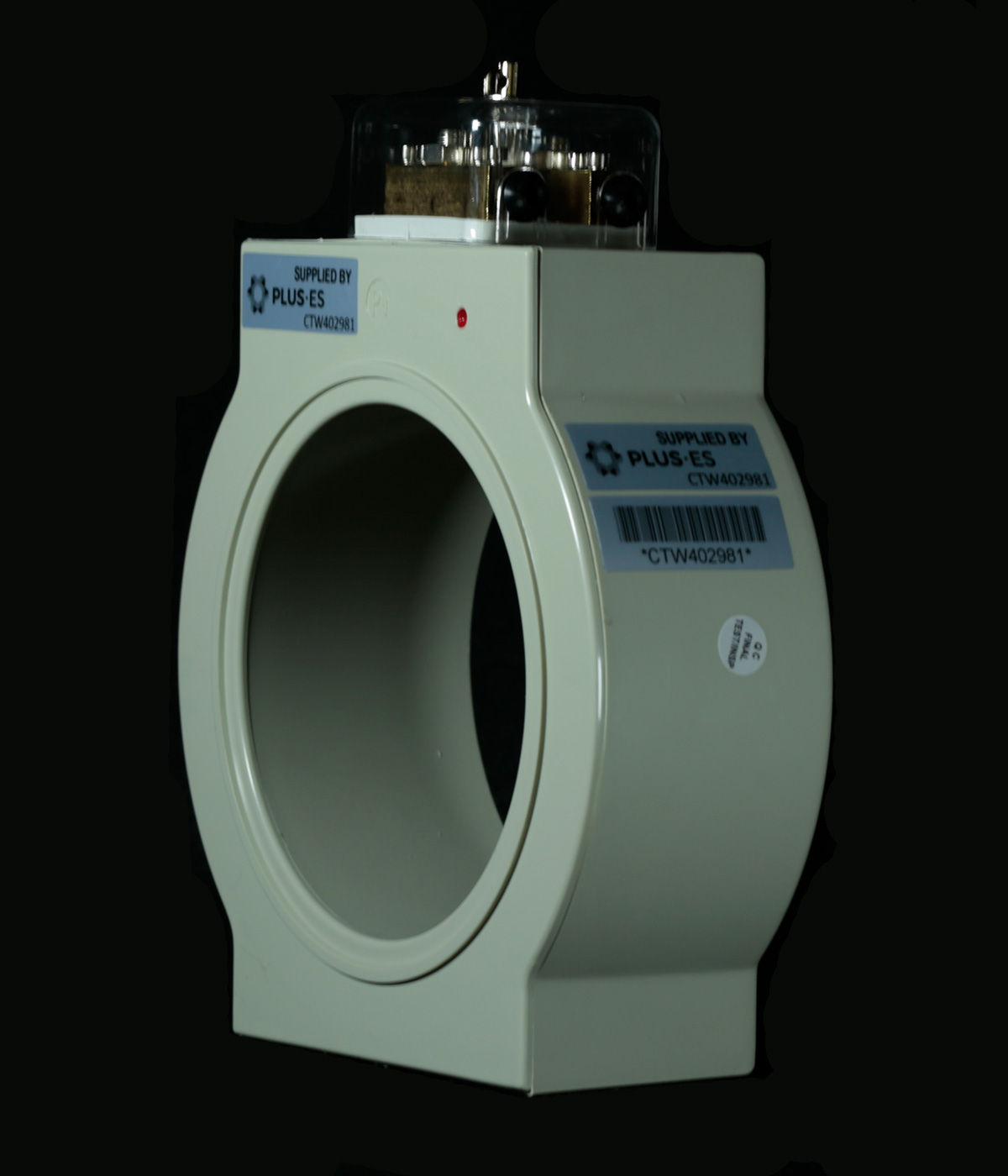

Type CTW - AS60044.1
Class 0.5S Ratio 1500/5
Burden 15VA maximum load >800A - 3000A


click to close

Current Transformer - W Type click for specifications

$617.00 set of 3
click to view full-size image

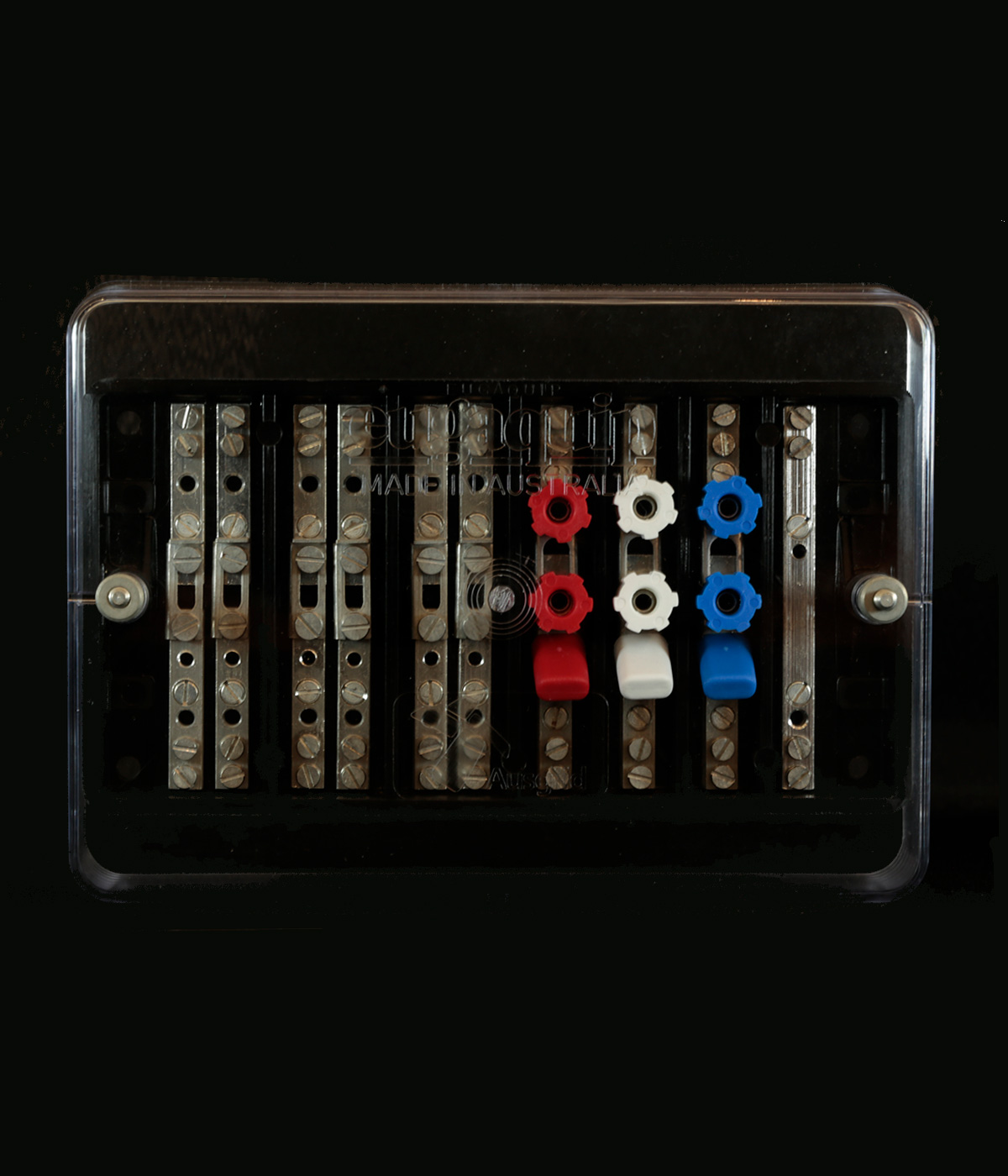

This Meter Test Block is the industry-accepted ESAA pattern, configured to the NSW requirements (ESAA Mk1 Test Block without shorting links or star point on CT non-polarities) and compliant with the NSW SIR and PLUS ES Metering Provider requirements.


click to close

Test Block (Low Voltage Current Transformer Metering)  click for specifications

$106.00 each


Water Meters & Accessories


click to view full-size image

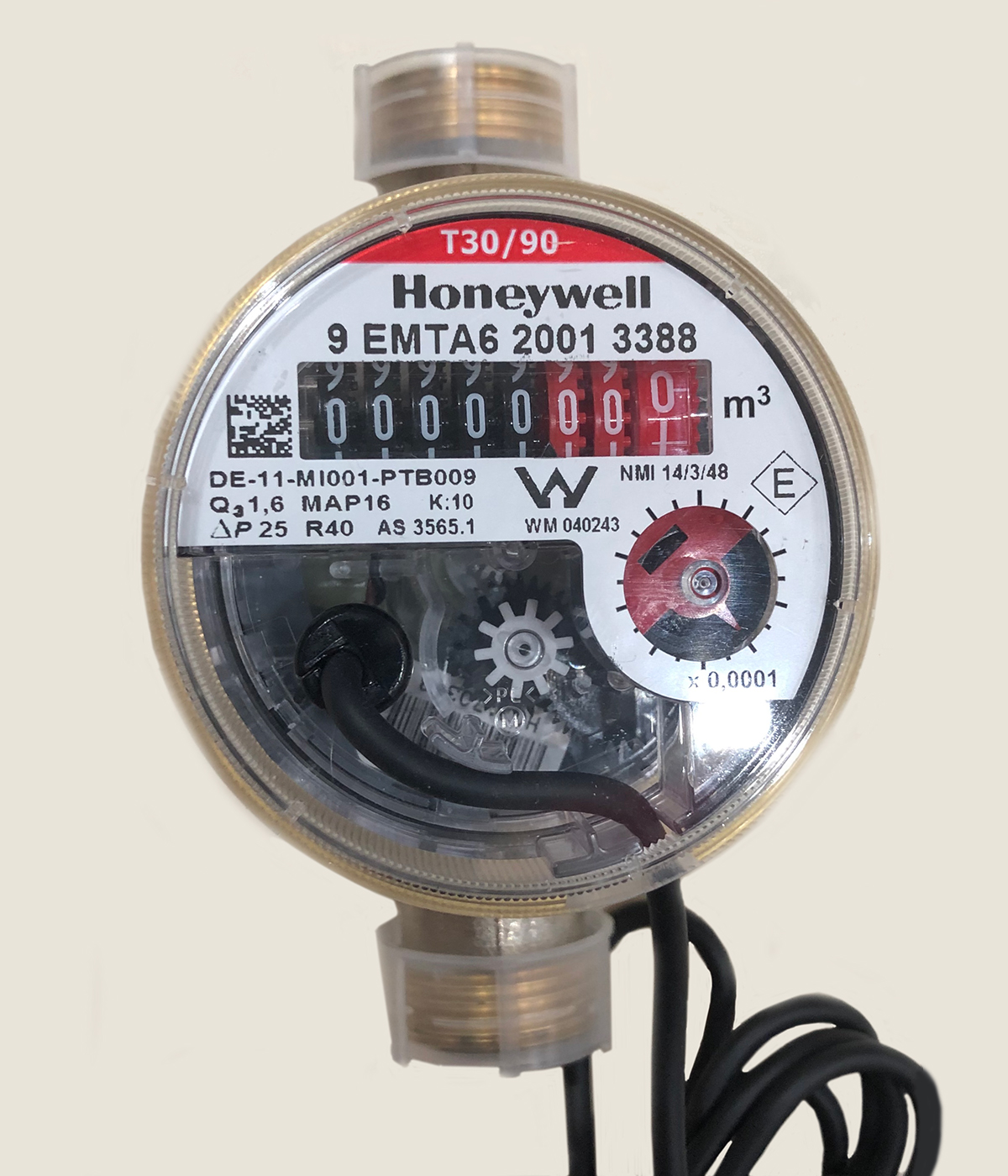

Single jet dry dial meter EVZP
Cold water up to 30 °C, hot water up to 90 °C
Nominal flow Qn 1.5 and Qn 2.5
Meter length 80, 110, 130 mm
Integrated potential-free pulse output


click to close

Water Meter Model S110 - 15mm warm water meter with pulse output. 10L/pulse. Non-return Valve included. click for specifications

$100.00 each


Happy with your selections?


Disclaimer: PLUS ES will review your request/offer and until such time, PLUS ES makes no representations or commitments regarding the availability of the requested goods or possible delivery timeframes. These are subject to PLUS ES’s inventory, existing customer demands and courier availability and PLUS ES will not be responsible for any delays in relation to your request/offer.
